DuoAqua DAT-1 Diesel Filter

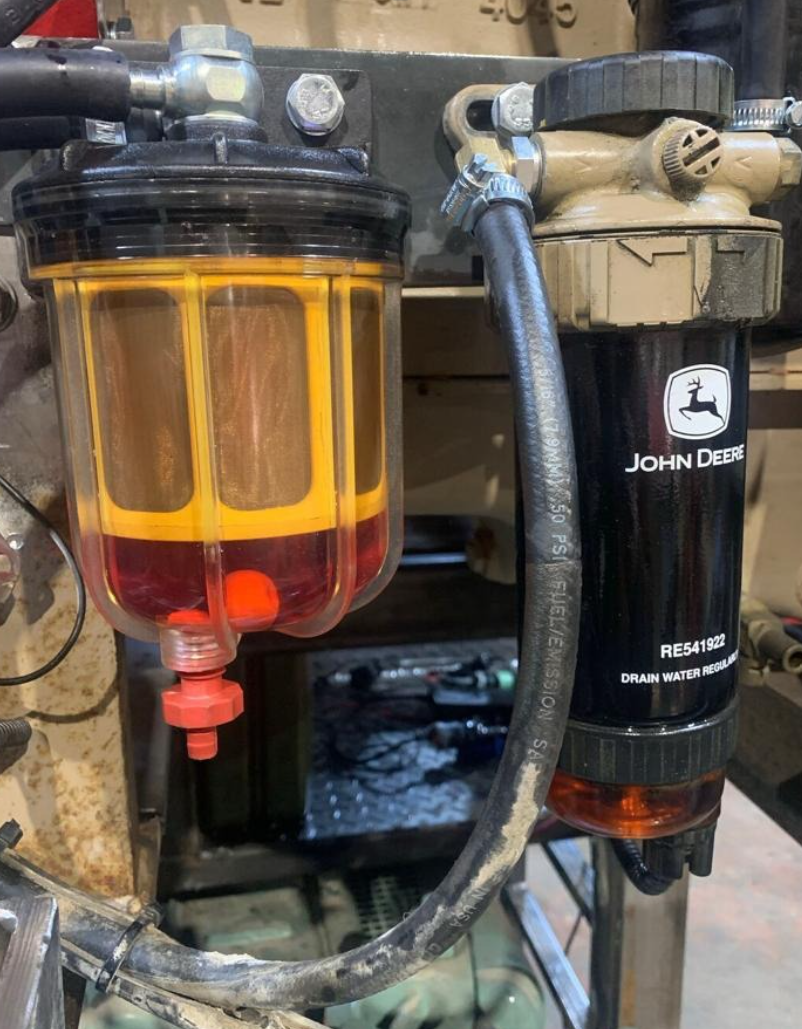

The iCerMax DAT-1 (Duo-AquaTrap™) is an advanced filtration system designed specifically for light-duty vehicles (LDVs), 4x4s, forklifts, small generators, and yachts. Positioned on the suction side between the tank and the OEM filter, this system offers superior protection against water and particle contamination, ensuring your fuel remains clean and your equipment runs smoothly.

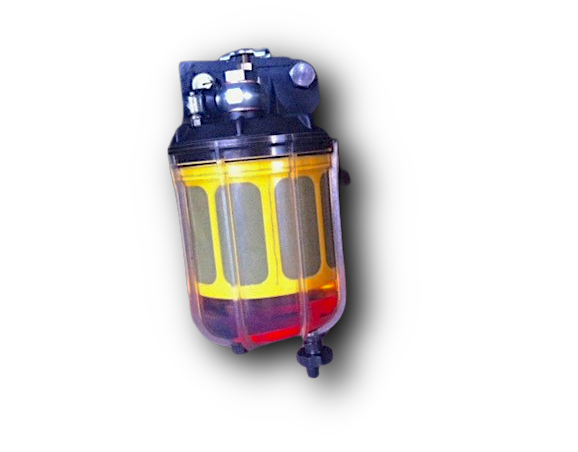

The DAT 1 features an 8mm banjo fitting as standard and comes equipped with a durable, transparent bowl for easy visual fuel verification. The system utilizes a 10 µm particle cartridge and a water separator cartridge with a green mesh, providing effective filtration. Additional components include a self-venting contamination drainage valve, a water level float indicator, and optional spin-on adapters, pump heads, and primers for enhanced functionality.

Customizable options allow for extra retention with a double-capacity transparent bowl, providing even greater filtration capacity. With a compact design (220 mm x 120 mm) and a flow rate of up to 3.78 LPM, the DAT 1 is capable of maintaining target cleanliness levels to ISO 14/13/11 standards. The system’s maximum operating pressure is 2 bar, with a burst pressure of 3.2 bar, ensuring reliable performance in demanding environments.

Specifications:

• Dimensions: 220 mm (H) x 120 mm (W)
• Diesel Volume: 720 ml
• Flow Rate: 3.78 LPM (max)
• μ Rating (micron): 10 µm (red cap)
• Max. Operating Pressure: 2 bar
• Water Holding Capacity: 165 ml
• Port Size: 14 mm
• Burst Pressure: 3.2 bar
• Clean Pressure Drop: 0.1 bar
• Target Cleanliness: ISO 14/13/11
