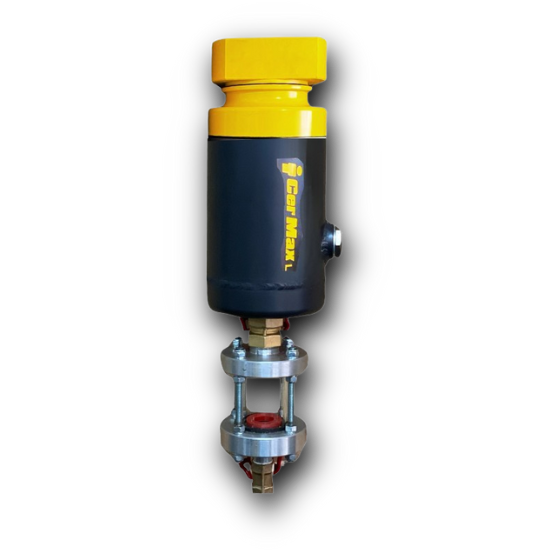

L Series Water Separator Filter

The iCerMax L Series Water Separator is a high-performance filtration solution designed for various industrial fuel systems, including kerbside pumps, cranes, plant equipment, and mobile bowsers. This system features a reusable spin-on housing that delivers effective water and particulate separation, ensuring your fuel remains free from contaminants and your equipment runs smoothly.

The system includes a stainless steel mesh and a 10 µm pleated paper water separator cartridge, providing reliable filtration with a large water separation media. The L Water Separator also features a yellow adaptor head with 1” BSP inlet and outlet ports, along with a small borosilicate glass water trap rated at 8 bar, ensuring robust performance under demanding conditions.

Capable of handling a diesel volume of 3 liters with an additional 300 ml water contamination capacity, the L Water Separator is built for efficiency. With a maximum flow rate of 60 LPM through a 1” BSP connection and a burst pressure tolerance of 8 bar, this system is designed to meet the needs of various industrial applications. The system’s target cleanliness ensures the removal of free and suspended water, with an option for a particle filter available.

Specifications:

• Diesel Volume:
• 3 liters (vessel)
• 300 ml (water contamination capacity)
• Burst Pressure Tolerance: 8 bar
• Flow Rate: 60 LPM (max) 1” BSP
• μ Rating (micron): 10 µm
• Removes free and suspended water
• Particle filter option available
• Dimensions:
• Housing Length (including head & water trap): 540 mm
• Housing Outer Diameter: 130 mm
• Cartridge Length: 380 mm
• Inlet/Outlet Ports on Adaptor Head 1”BSP: 25 mm
