XXL Combo 6 Bulk Diesel Filter

The iCerMax XXL Combo 6 is an advanced filtration solution engineered for medium to large tanks, supporting capacities up to 33,000 liters. Ideal for applications such as kerbside pumps, gensets, tanktainers, and mobile bowsers, this system ensures superior fuel cleanliness through a three-stage filtration process.

Key components include an XXLW water separator vessel with a sight glass, stainless steel mesh for water separation, and a 10 µm pleated paper filter for particle removal. The system also incorporates a large borosilicate glass water trap with an 8-bar rating, ensuring high durability and performance. The XXXLP particle filter vessel uses a 3 µm multilayered synthetic fiber cartridge, providing extensive protection against contaminants.

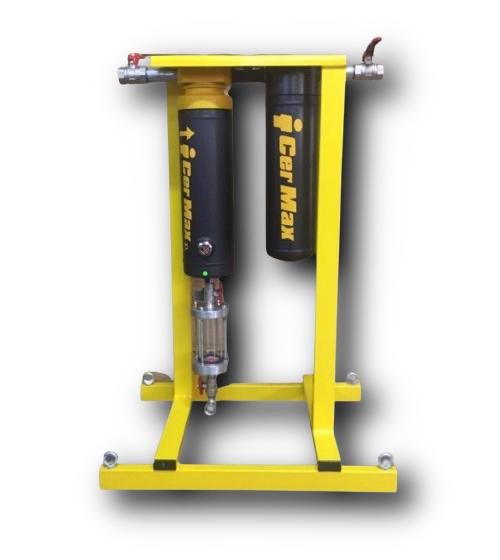

The XXL Combo 6 is fitted onto a sturdy, powder-coated skid frame, making it a durable and practical choice for various industrial fuel filtration needs. With a flow rate of up to 140 LPM through 1” BSP connections, and targeting a cleanliness level of ISO 14/13/11, this system guarantees reliable operation and extended equipment life.

COMPONENTS OVERVIEW
• XXLW water separator vessel (spin on) with sight glass

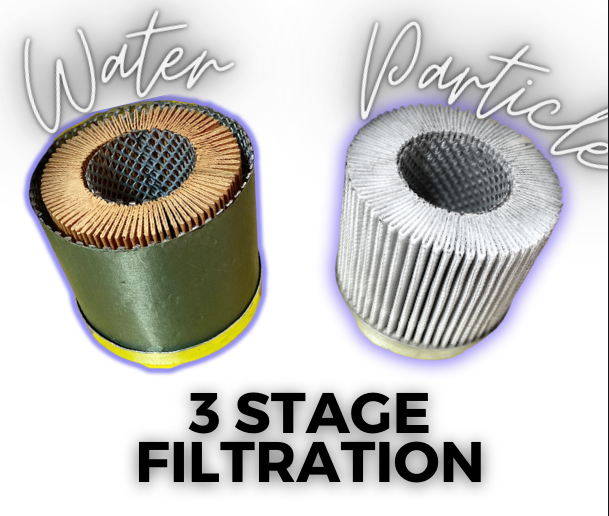

• XXLW water separator cartridge w/stainless steel mesh (water) & 10 u pleated paper (particle)
• Large Borosilicate glass water trap (8bar)
• Yellow adaptor head (1″ BSP inlet & outlet)
• XXXLP Particle filter vessel
• XXXLP particle filter cartridge with 3 u multilayered fully synthetic fibre
• Media Surface Area @ 1.6m XXL synthetic particle cartridge.
• Yellow adaptor head (1″ BSP inlet & outlet)
• Pressure gauge
• 1″ Bsp quick service ball valves
• All fitted to a skid (powder coated frame)

DIESEL VOLUME
• 7.5 litres (XXLW)
• ~8 litres (XXXLP)
FLOW RATE
• 140Lpm (max) 1″ BSP
y RATING (micron)
• Free & Suspended water permanent coalescing mesh
• 10 u cellulose
• 3 u synthetic glass fibre on particle [1.6m’ surface areal
TARGET CLEANLINESS
• ISO 14/13/11
