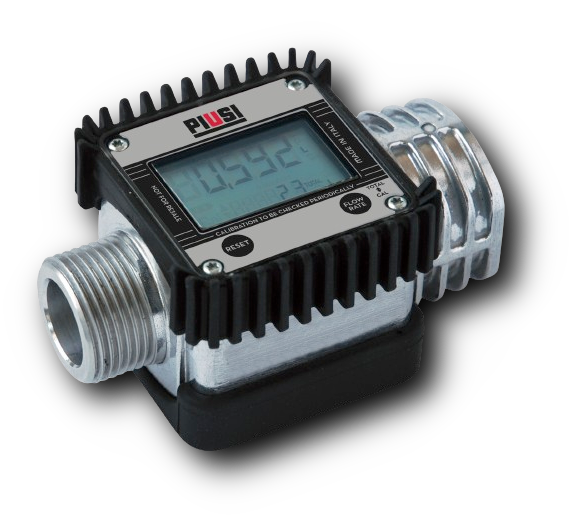

Piusi K24 Diesel Meter

The PIUSI K24 Digital Flow Meter is an advanced turbine meter specifically engineered for diesel measurement. Designed for easy installation, the K24 can be placed either in-line or at the end of a delivery pipe, making it highly adaptable to a variety of setups. The meter features a rotatable LCD display, allowing for easy reading from any angle.

Built with a choice of an aluminum or technopolymer body, the K24 ensures long-lasting durability even in demanding environments. It provides accurate measurements with an accuracy of ±1% and repeatability of 0.2%, and it supports a flow rate range of 7 to 120 liters per minute. The K24 can handle a maximum operating pressure of 20 bar, making it suitable for high-pressure applications.

The meter is equipped with a clear and easy-to-read LCD display, which also indicates flow rate, ensuring precise monitoring of diesel usage. The PIUSI K24 is an essential tool for those needing reliable and accurate fuel measurement in industrial, agricultural, and commercial sectors.

Specifications:

• Flow Rate: 7 – 120 L/min
• Accuracy: ±1%
• Repeatability: 0.2%
• Max Operating Pressure: 20 bar
• Display: Rotatable LCD
• Body Material: Aluminum or Technopolymer
• Connections: 1” BSP Inlet/Outlet
• Power Supply: 2 x AAA batteries (included)
