Mobile Tank Cleaner Trolley

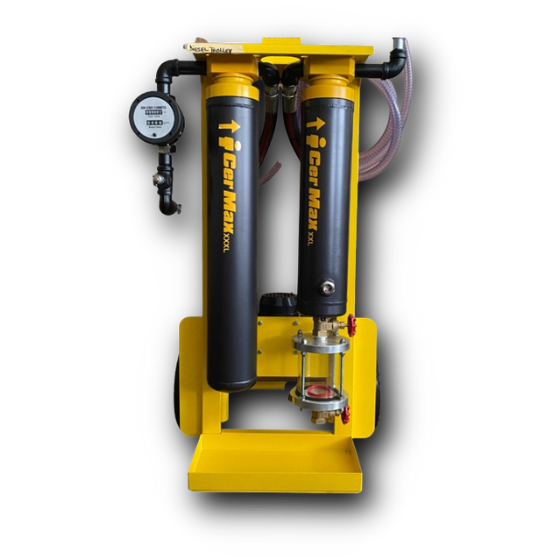

The iCerMax Mobile Tank Cleaner Trolley is a state-of-the-art filtration solution designed to meet the rigorous demands of industrial fuel systems. This mobile unit is capable of servicing tanks up to 15,000 liters, making it ideal for heavy commercial vehicles, trucks, and earthmoving equipment. With adaptable flow rates of up to 56 LPM depending on the application and pump configuration, this trolley offers unparalleled flexibility and efficiency.

The trolley is equipped with an XXLW spin-on water separator vessel and an XXXLP spin-on particle filter vessel, featuring a multi-layered pleated synthetic fiber cartridge with a large media surface area of 2.2m². The unit also includes a large borosilicate glass water trap rated at 8 bar, heavy-duty drain valves, and a PUISI Panther 56 Pump (220v) for reliable operation. Additional features such as a flow meter, pressure gauge, quick servicing ball valves, and 2×3 meter steel coil reinforced transparent hoses enhance the functionality of this mobile system.

Designed for ease of use, the trolley is light, robust, and can be operated by a single person. It also comes with foam-filled rubber tires for durability across various terrains, and a removable drip tray for easy maintenance. All components are fitted to a powder-coated mobile frame, ensuring long-lasting performance even in the harshest environments.

Specifications:

• Dimensions: 1200 mm (H) x 600 mm (W) x 500 mm (D)
• Diesel Volume: 20 liters
• Flow Rate: 56 LPM 1” BSP (max)
• μ Rating (micron):
• Free & Suspended water permanent coalescing mesh
• 10 µ cellulose
• 3 µ synthetic glass fiber particle (2.2m² surface area)
• Max. Operating Pressure: 2 bar
• Water Holding Capacity: 1000 ml
• Port Size: 16 mm
• Weight: 60 kg
• Target Cleanliness: ISO 14/13/11
