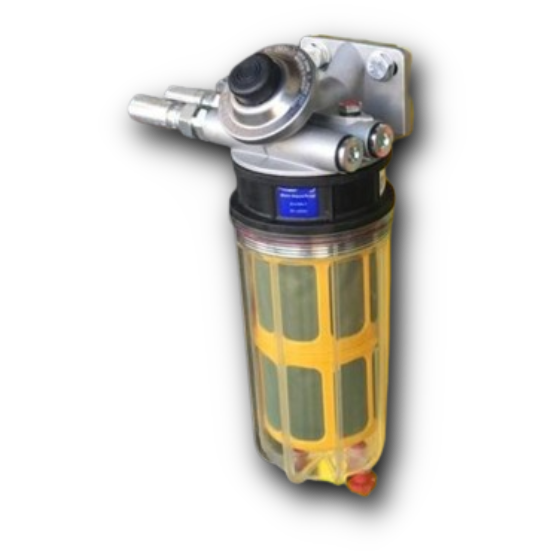

DuoAqua DAT-2 Diesel Filter

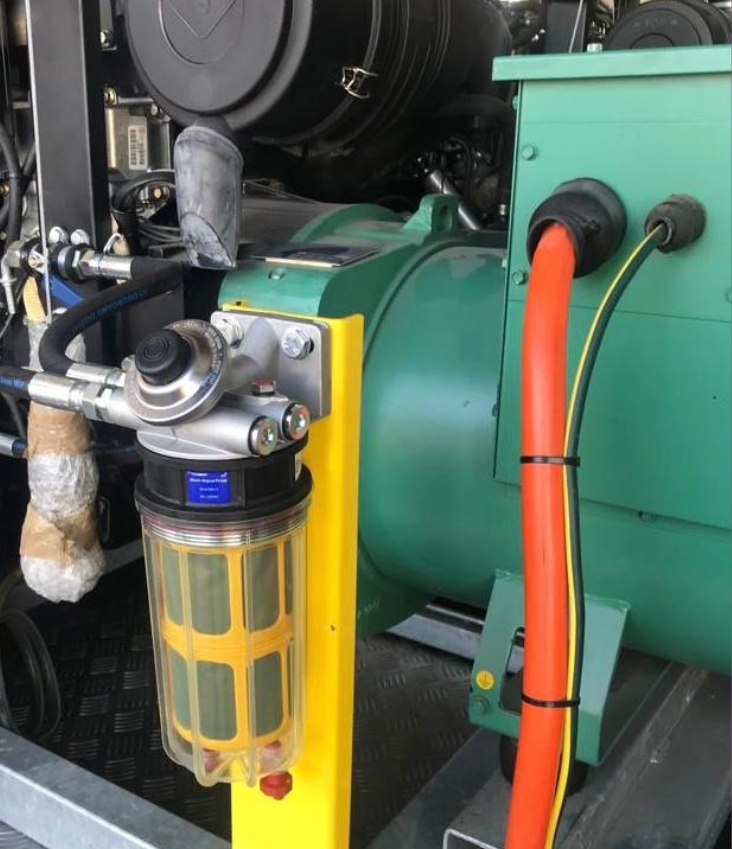

The iCerMax DAT-2 (Duo-AquaTrap™) is a powerful filtration solution engineered for medium to large diesel engines, including heavy commercial vehicles (HCVs), trucks, generators, and earthmoving equipment. Positioned on the suction side between the fuel tank and the OEM filter, the DAT 2 ensures that your fuel remains clean and free of harmful contaminants, thus protecting your engine and extending its lifespan.

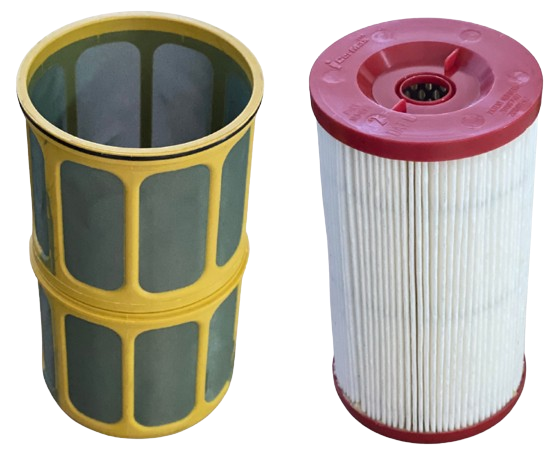

The system features a 10mm banjo fitting as standard, along with a durable glass-reinforced plastic bowl that allows for easy visual fuel verification. It utilizes a 10 µm particle cartridge and a green mesh water separator cartridge, effectively filtering out both water and particulates. The self-venting contamination drainage valve and water level float indicator add further convenience and reliability to the system.

Custom options include a spin-on adapter, pump head, and primer, all of which come with a transparent bowl and a 10 µm particle cartridge. Additionally, you can choose from three cartridge options, including pleated paper or multilayered sub-micron synthetic fiber, to suit your specific filtration needs.

The DAT 2 is designed for high performance, with a maximum flow rate of 7.56 LPM and a target cleanliness level of ISO 18/16/11 and better. The system is capable of handling pressures up to 2 bar, with a burst pressure rating of 3 bar, making it a reliable choice for demanding industrial applications.

Specifications:

• Dimensions: 305 mm (H) x 120 mm (W)
• Diesel Volume: 1,280 ml
• Flow Rate: 7.56 LPM (max)
• μ Rating (micron): 10 µm (red cap)
• Max. Operating Pressure: 2 bar
• Water Holding Capacity: 165 ml
• Port Size: 16 mm
• Burst Pressure: 3 bar
• Clean Pressure Drop: 0.1 bar
• Target Cleanliness: ISO 18/16/11 and better
